Leo

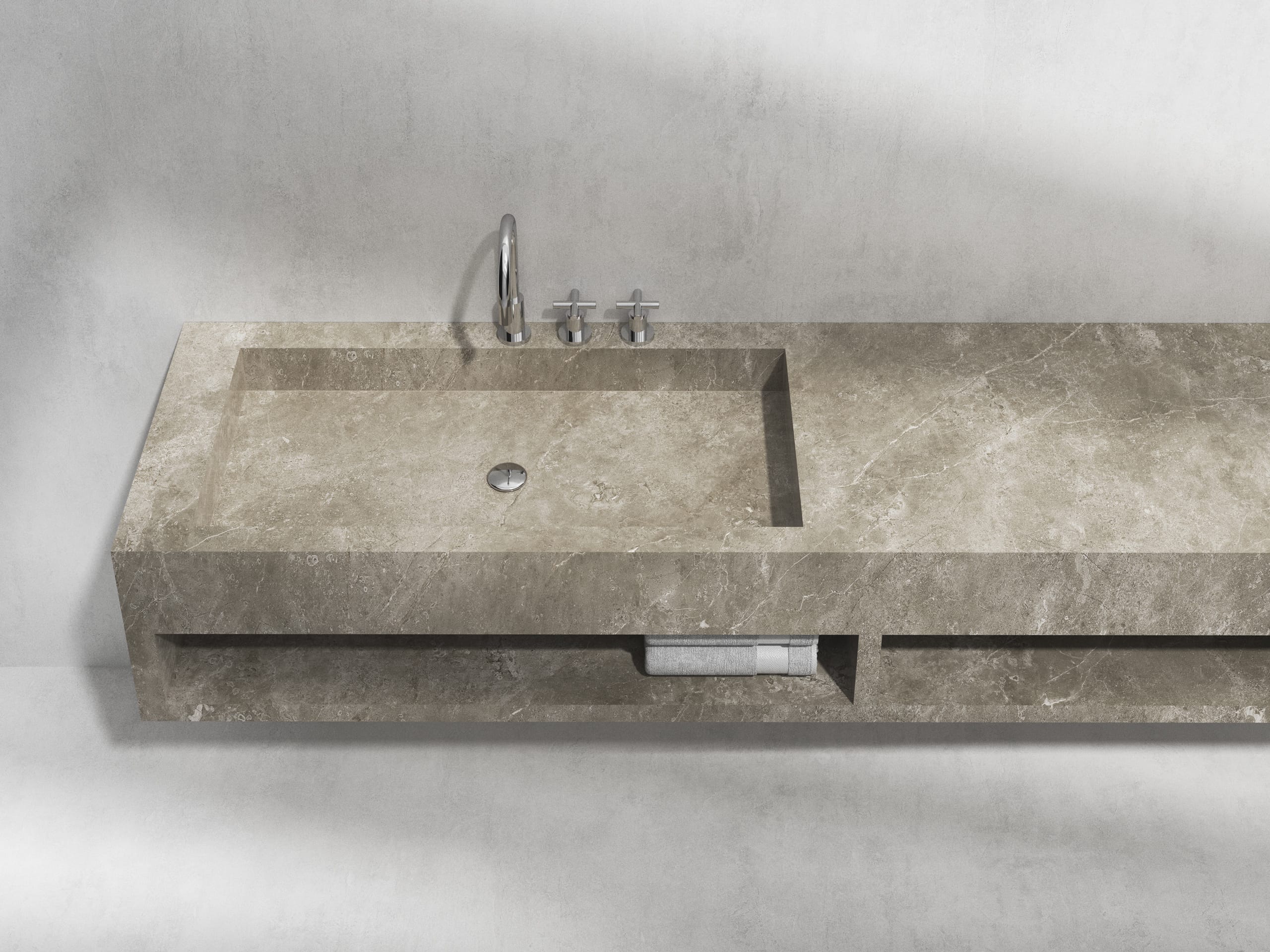

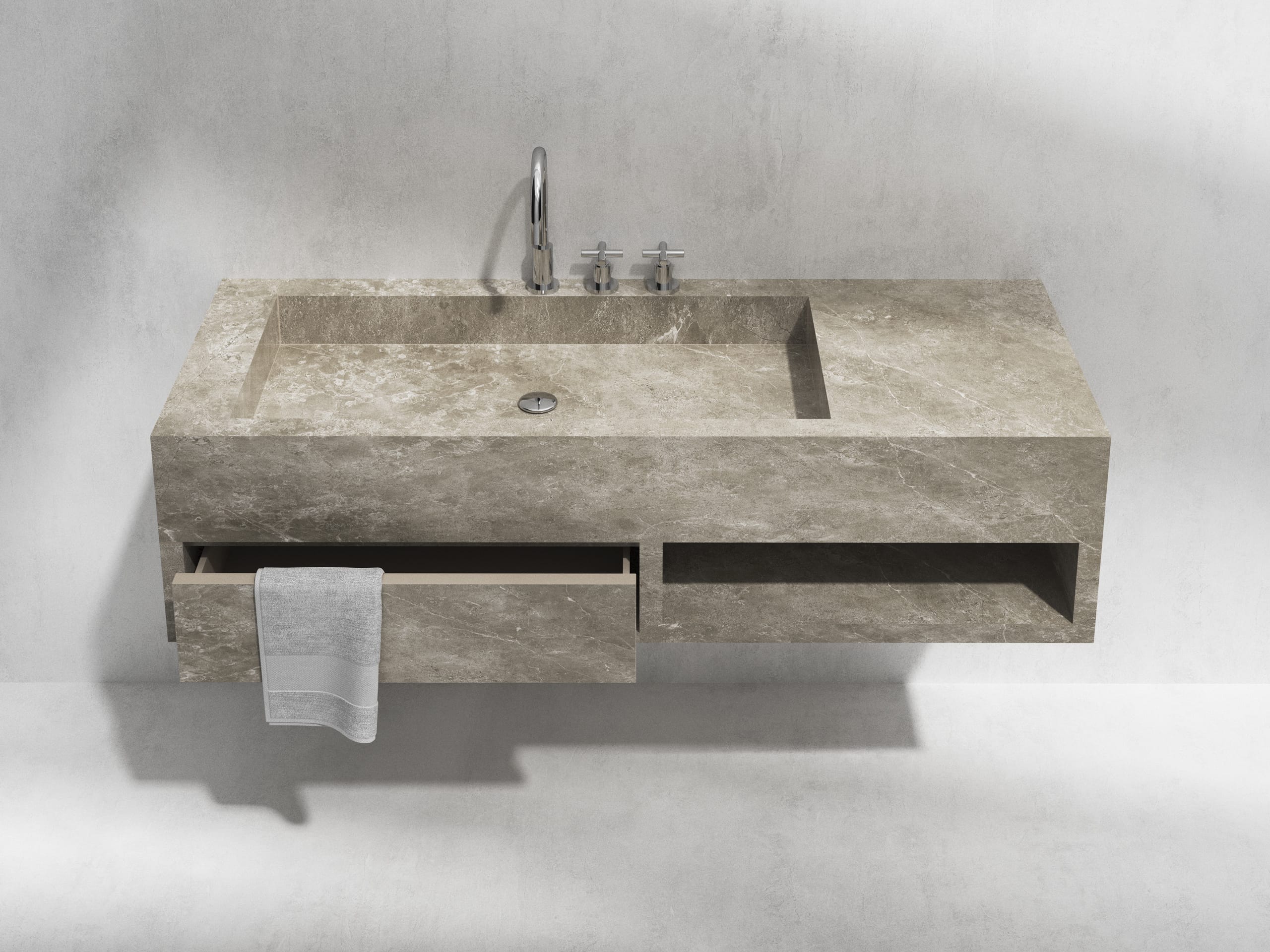

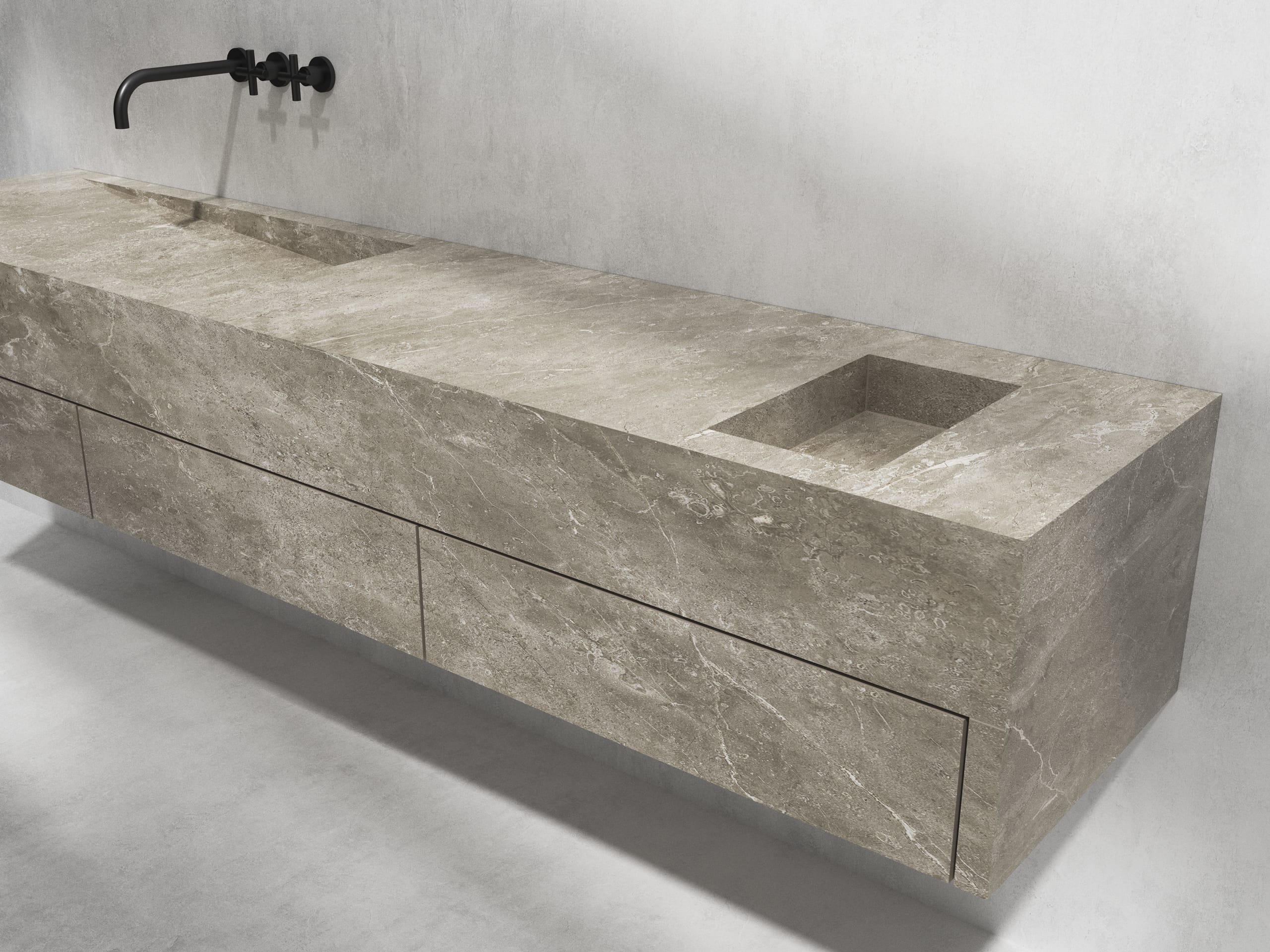

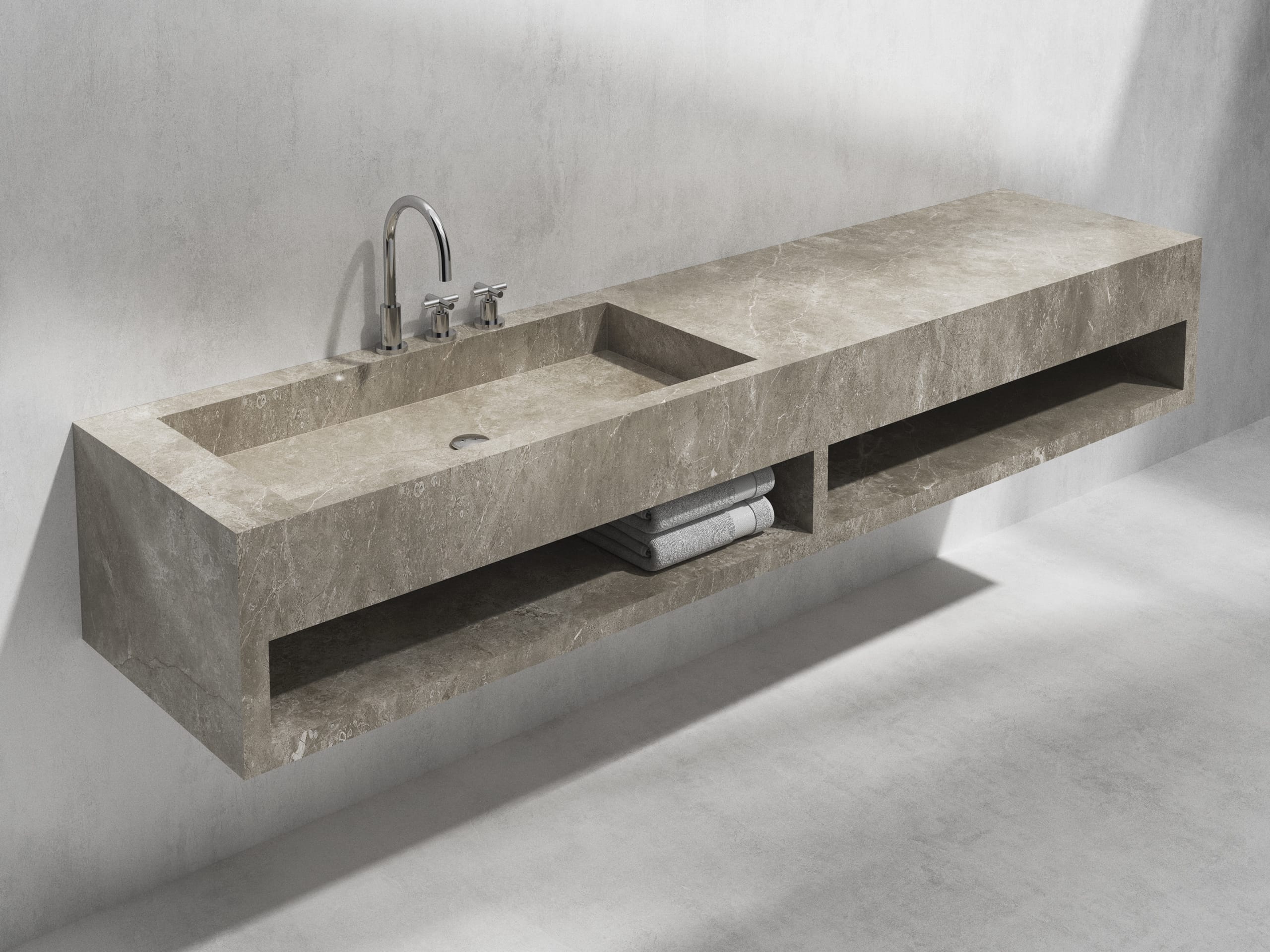

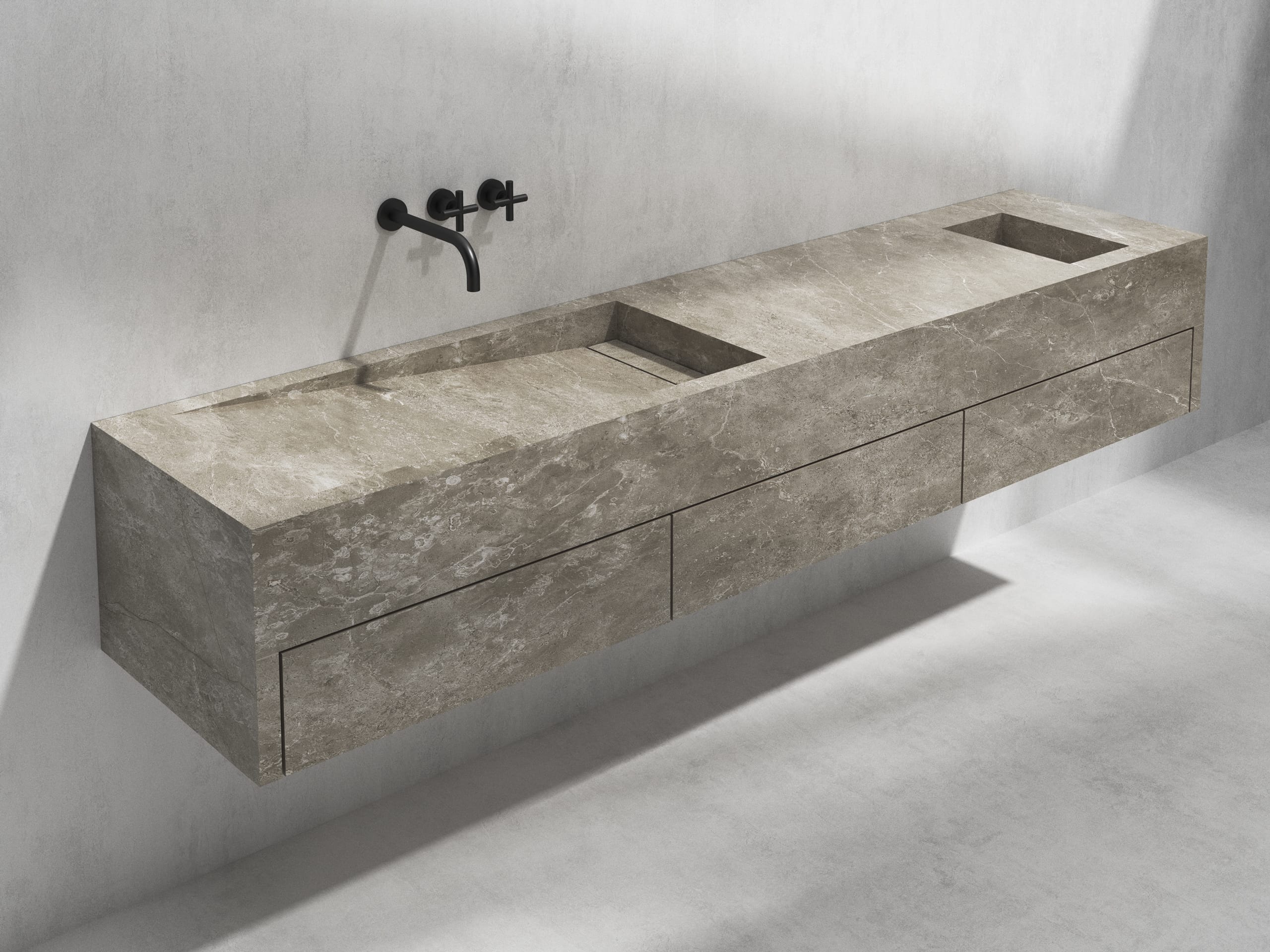

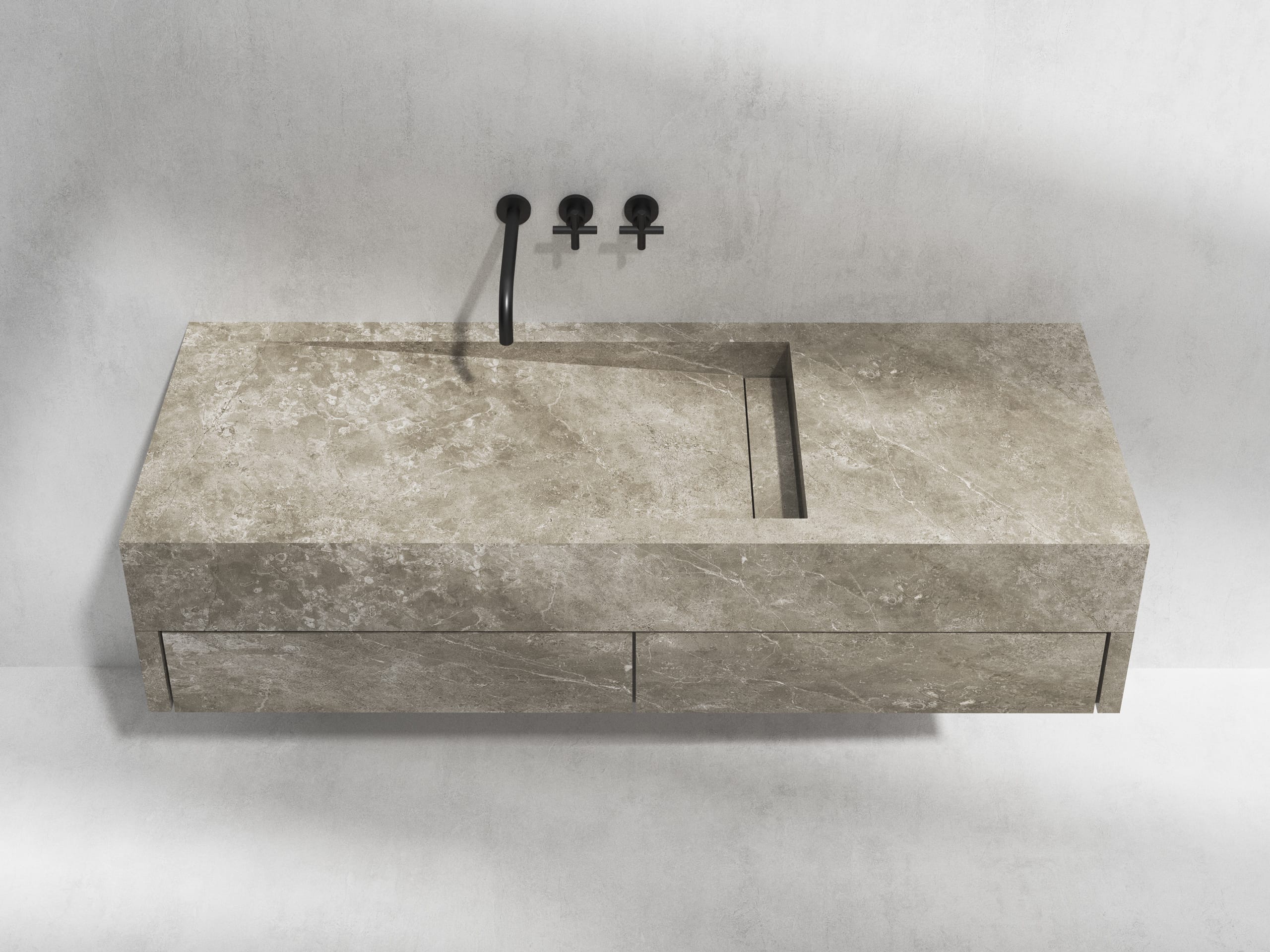

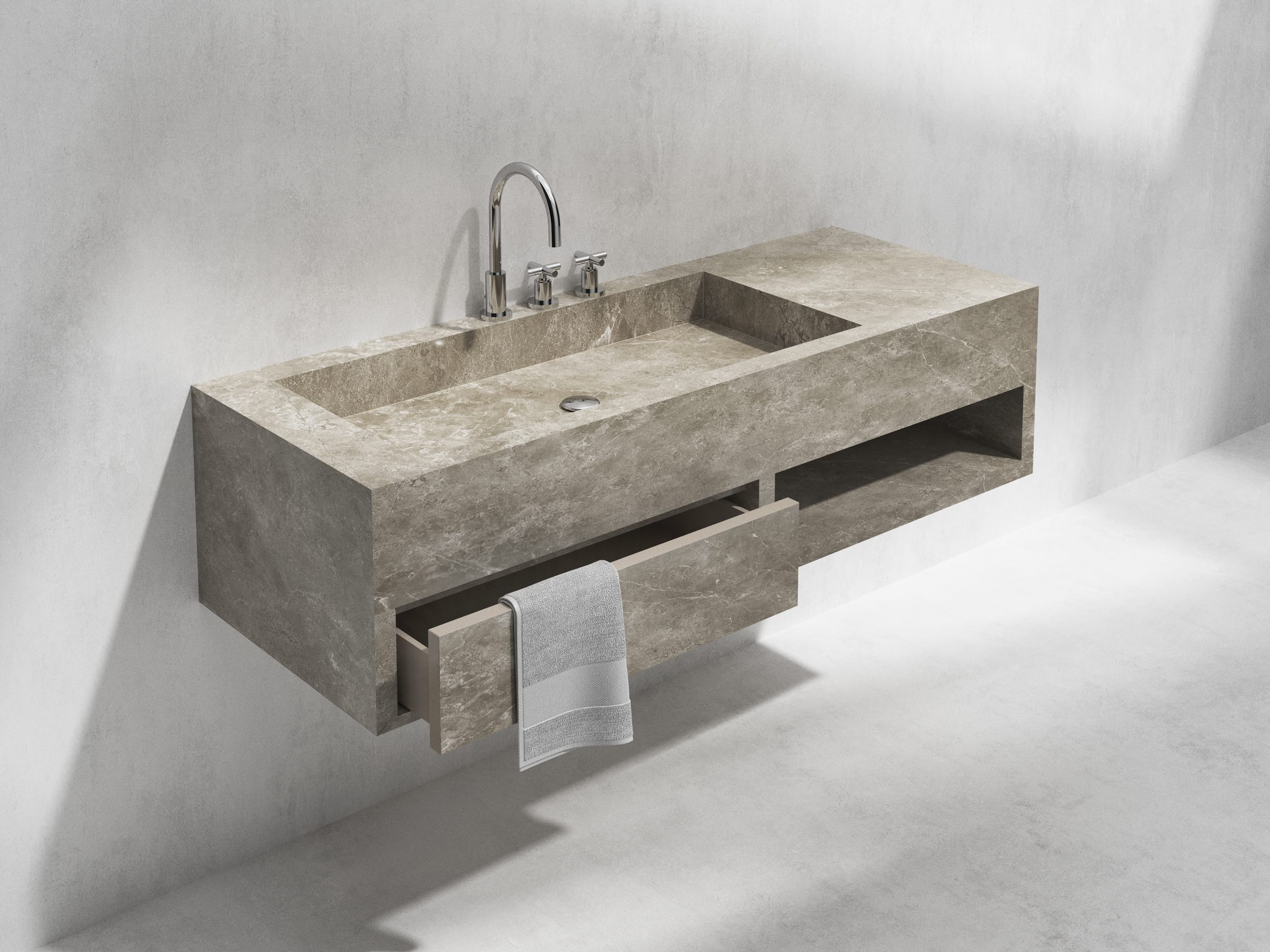

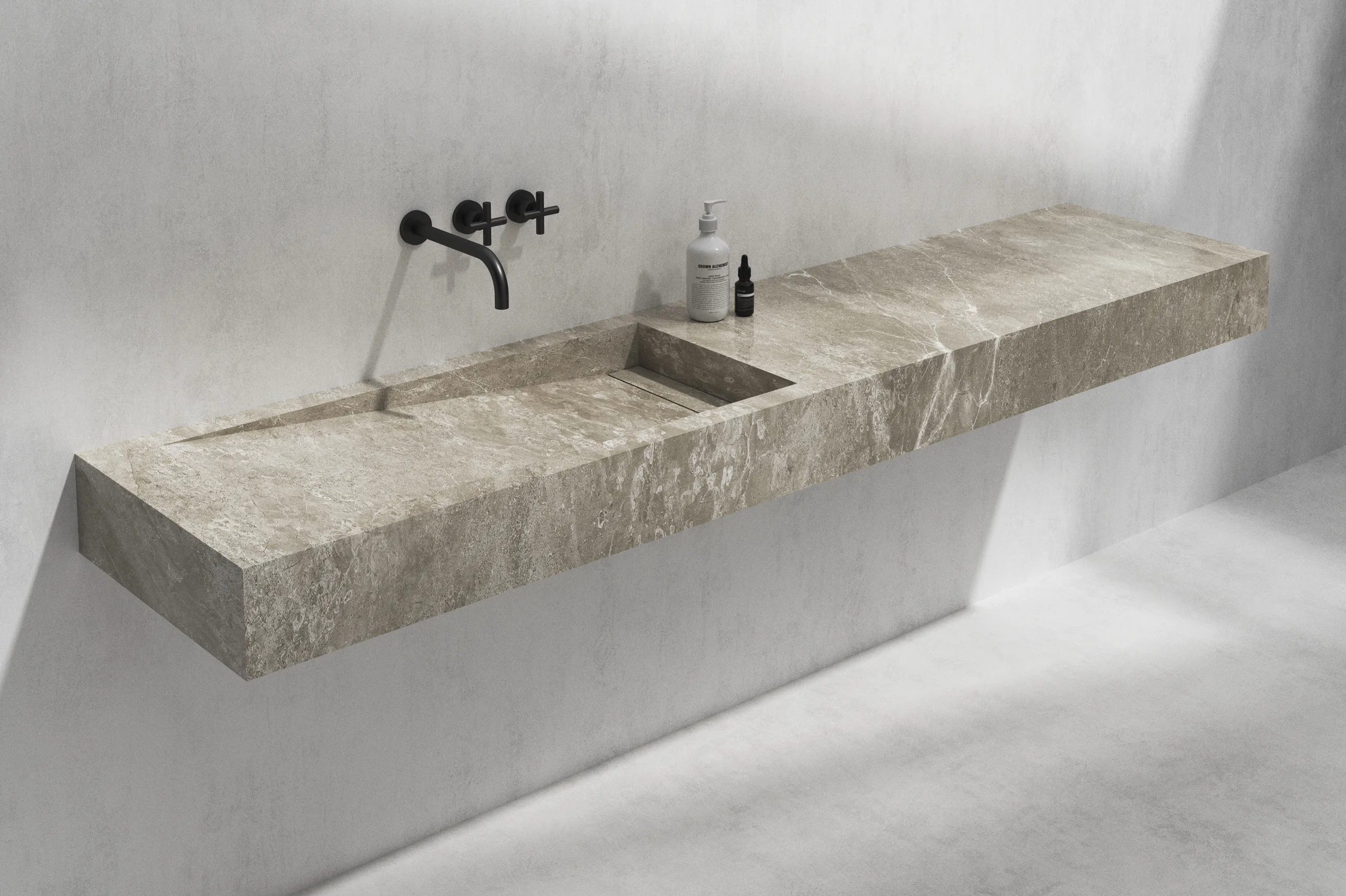

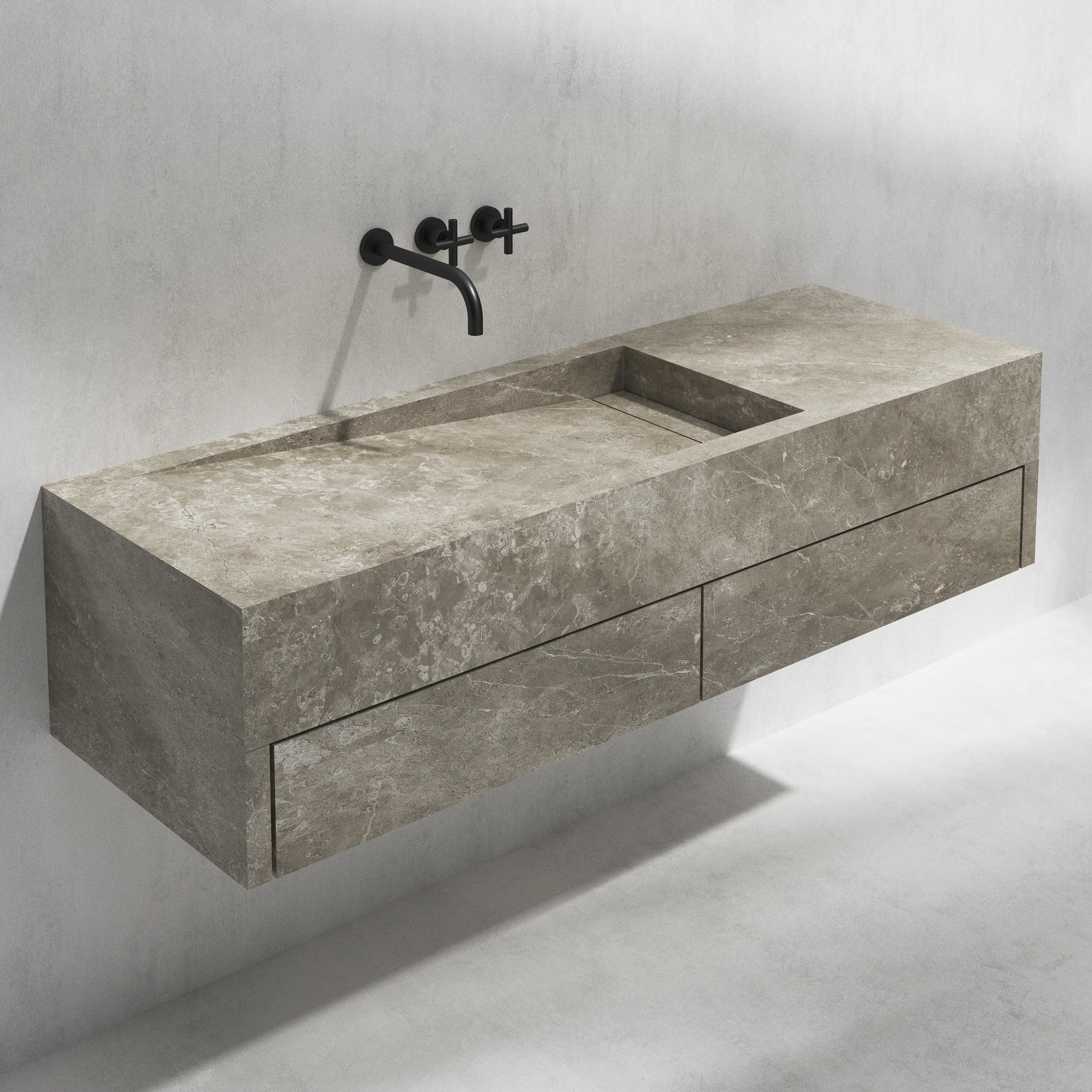

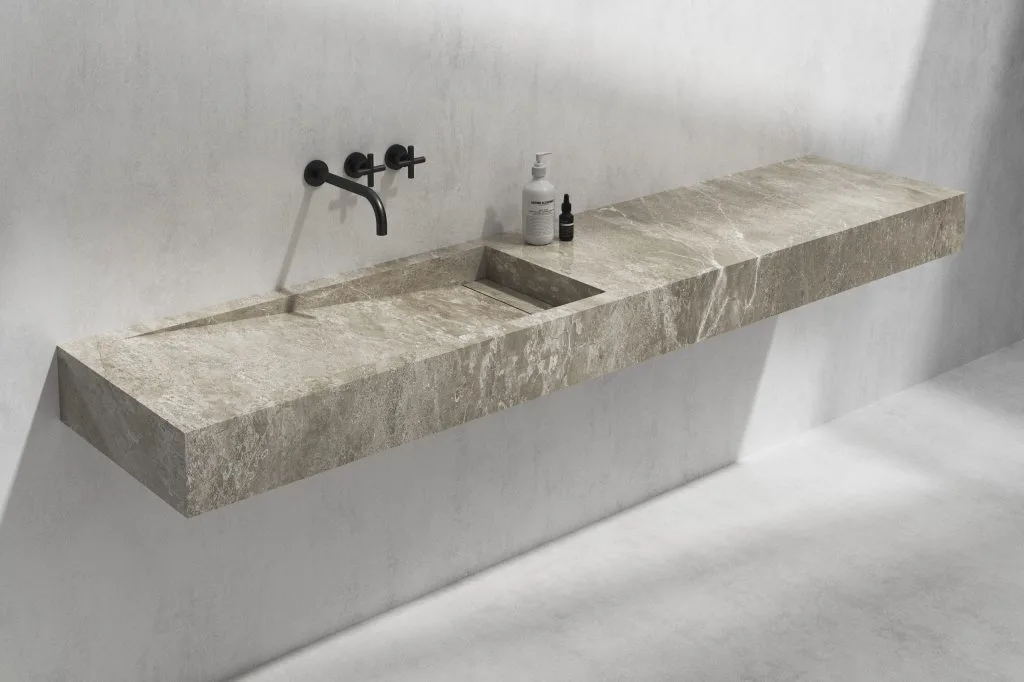

Leo is a wall-mounted washbasin with integrated storage. Leo features a hidden waste and sloping basin and is ideal with wall-mounted taps. Sink base can be specified with a front-to-back or sideways sloping base, which can be fixed or removable for easy cleaning. Various integrated storage options are available. Leo is manufactured at our design studio in approximately 6-10 weeks. Each item is made-to-order and can be specified with an array of colours and syles. Please see specification below. The sizes shown are representative only, as your item will be made to your specific size and fitment requirements. Parameters for width, height and depth (w x h x d) measurements are quoted as a guide.



Our solution ensures quality and function, and provides the opportunity to produce the truly bespoke. To discuss your interior design and home décor requirements speak with our design technicians who can walk you through the various options and discuss how to bring your ideas to reality.

Get In Touch

SPECIFICATION

  • Item

    Leo

  • Description

    Wall-mounted washbasin

  • Dimensions (mm) (tolerance ±2mm)
    Length (L): 1000-2600
    Height (H): 120-300 or 350-500 w/storage
    Depth (D): 400-650
  • Price

    Please enquire

  • Approximate weight (will be confirmed)

    40-50 kg

CONFIGURATION

  • Storage Options

    [ Double drawer ]

    [ Drawer & shelf ]

    [ Double shelf ]

  • [ Triple drawer ]

    [ Triple shelf ]

  • Base type

    [ Fixed straight base ]

    [ Fixed side sloping base ]

    [ Fixed front sloping base ]

  • Waste
    [ Chrome ][ Black ][ Brass ]
    Hidden waste
    Hidden waste
  • Cavity or Recess

    Max models can be specified with a recess suitable for storing hand towels and toiletries or a cavity /opening for storage buckets, laundry baskets or waste bins.

TAP CONFIGURATION

  • Taps

    Please note that we do not supply taps. If the tap configuration specified is deck-mounted, the item will come with pre-drilled tap holes to the spacing specifications provided during the order process. We provide a standard diameter of 35 mm for all tap holes; however we can cut these to any size in order to accommodate your individual needs. There are many different sizes available on the market so please consult tap manufacturer’s specification.

  • Tap mounting position

    [ Wall-mounted ][ Deck-mounted ] For deck-mounted installations, please provide the make and model of the chosen tap system.

  • No. of pre-drilled holes

    [ 1 ][ 2 ][ 3 ][ 4 ] Please consult tap manufacturer’s specification.

  • Diameter of tap holes

    We provide a standard diameter of 35 mm for all tap holes; however we can cut these to any size in order to accommodate your individual needs. There are many different sizes available on the market so please consult tap manufacturer’s specification.

  • Distance b/w tap holes

    Please consult tap manufacturer’s specification.

  • Distance b/w tap & basin

    When deciding on the location of sink and taps, ensure to take into account the thickness of the sink and tap fixings to ensure adequate clearance. Typically basins and vanity tops should be installed at a height of 85 cm. Consider a distance of 100-120 mm between the wall-mounted taps and the basin. Ensure any wall plumbing and pipe works are carried out prior to installation.

OPTIONS

  • Colour

    Choose from our Collection.

  • Finish

    [ Natural ][ Polished ][ Honed ] Availability of finish is dependant on chosen surface colour.

NOTES

  • Liability

    Please note that we cannot be held responsible for the structural and plumbing aspects of installation. We therefore accept no liability for damage to the item during installation. We strongly recommend choosing a reputable and qualified professional for installation of this item.

  • Preparation

    Two people may be required to safely handle and install this item.

    • Due to the considerable weight of these items, when wall-mounting the walls or support structure to which it will be fixed must be checked and verified by a structural engineer. The installation should only commence once these supporting walls meet the necessary standards.
    • When wall-mounting, ensure that all electrical works, wall plumbing and pipe works have been carried out prior to installation.
    • Only once the fixing brackets have been securely mounted, should tiles be fixed to the wall.

  • Composite structure

    The internal structure of our items depends on the weight and product type.

  • Fixings & plumbing

    Due to the countless fixing options and wall types used within building works, we do not supply fixing screws, bolts, waste traps, tap connectors or any plumbing components with our items.

    • If your item is to be wall-mounted, wall fixing brackets will be supplied. Two or three wall fixing brackets will be provided depending on the length of the item.
    • If fixing screws are required for this item, the specification for these fixings will be documented in the technical drawing supplied.
    • All basins are supplied with a pre-installed 1 ¹/₄” unslotted click clack basin waste, sealed with silicon. If this waste is visible it can be specified with a chrome, black or brass finish.
    • For fixed base and hidden waste basins, water flows through a thin channel into an unseen INOX steel sink bowl and waste system, accessible from underneath the item.

  • Order process

    Clients are encouraged to discuss their project with our TAILOR-MADE+ consultants. We have a highly trained team of architects, engineers and account managers who will provide assistance through the entire process. This includes documenting your design, configuring options, confirming sizes and arranging delivery. Once the technical requirements for the project have been documented, our CAD technicians will prepare a technical drawing of the item for your signed approval. As soon as approval has been received and payment has been arranged, manufacturing will commence at our state-of-the-art UK studio.

  • Delivery & packaging

    Delivery & packaging cost will depend on the size and weight of the item and delivery postcode. The final cost will be communicated during your order confirmation. Each item is individually packed in a custom built enclosure. These enclosures ensure that stress and flex is not transferred to the item during transport. The enclosure is then wrapped and sealed in plastic.

  • Lead time

    Lead time 6-10 weeks from payment confirmation and receipt of signed technical drawing.

  • Disclaimer

    Please note that while every effort will be made to supply goods to the size and colour specified, due to the handmade nature of these items, slight variations may occur. We adhere to a dimensional tolerances limit of ±0.3%. It is also impossible to choose a specific graphical face or area of the tile and its location within the item. Where sizes are specified by the customer these are assumed to be the total dimensions to be made including any fixtures or fittings.

Warranty

We are so confident in the quality of our craftsmanship that we are pleased to provide a limited warranty of 10 years on all items.

10
Years Warranty
